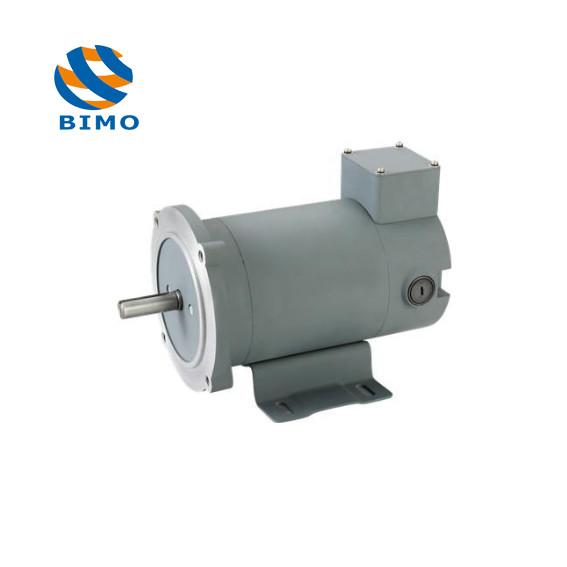

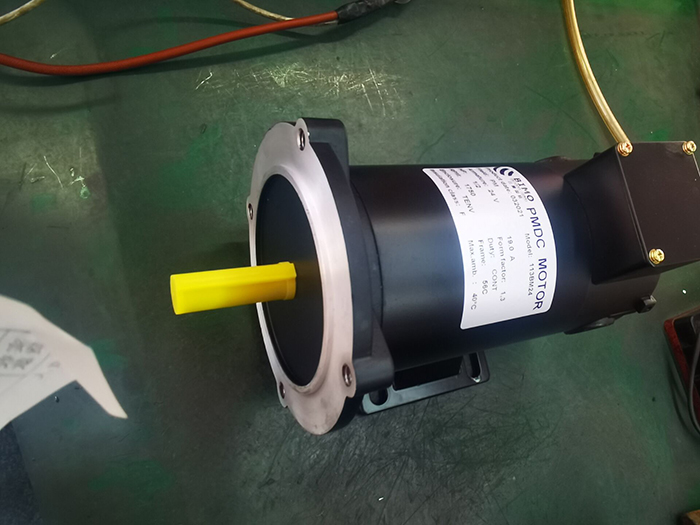

12V 24V DC Motor 1/2HP 1750R NEMA 56C TENV Permanent Magnet Brushed DC Motor
1,Brushed DC motor is a DC motor with fixed main poles and brushes installed on the stator of the brushed motor, and an armature winding and a commutator installed on the rotor.
2, The electric energy of the DC power supply enters the armature winding through the brush and the commutator to generate the armature current, and the magnetic field generated by the armature current interacts with the main magnetic field to generate the electromagnetic torque, so that the motor rotates to drive the load.
2. Flange:NEMA 56C ,NEMA 48C ,IEC and so on
4. Appreciations:widely used in printing and packing machines,working line,machine tools,gym equipments,fans,various mechanical and automatic control systems.
| Power(HP) | Speed(RPM) | Arm Volt | NEMA FRAME | ENCL. | Curret(Amp.) | Torque(In.Ibs) | App.Weights(Ibs) | |
| 1/4 | 1750 | 12 | 56C | TENV | 21.0 | 9 | 21 |
| 1/4 | 1750 | 24 | 56C | TENV | 10.5 | 9 | 21 |
| 1/3 | 1750 | 12 | 56C | TENV | 27.0 | 12 | 23 |
| 1/3 | 1750 | 24 | 56C | TENV | 13.5 | 12 | 23 |
| 1/2 | 1750 | 12 | 56C | TENV | 39.0 | 18 | 25 |
| 1/2 | 1750 | 24 | 56C | TENV | 20.0 | 18 | 25 |
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
