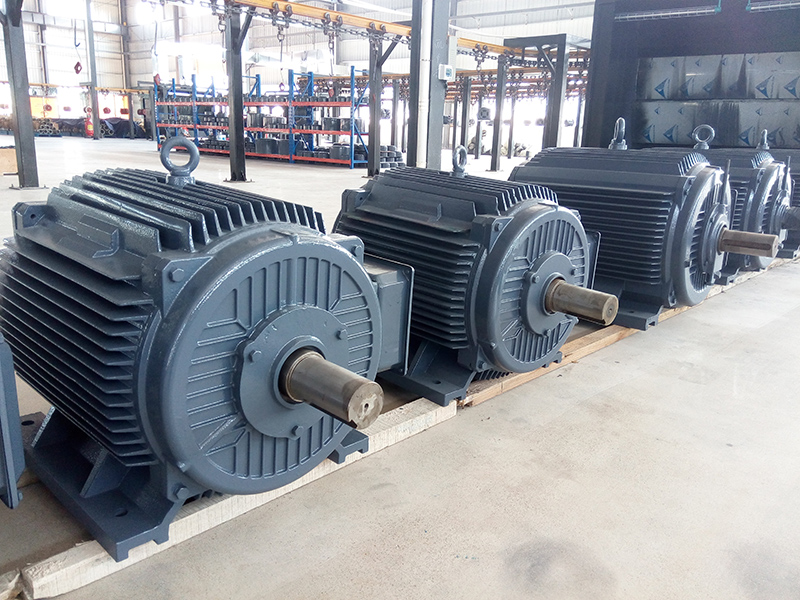

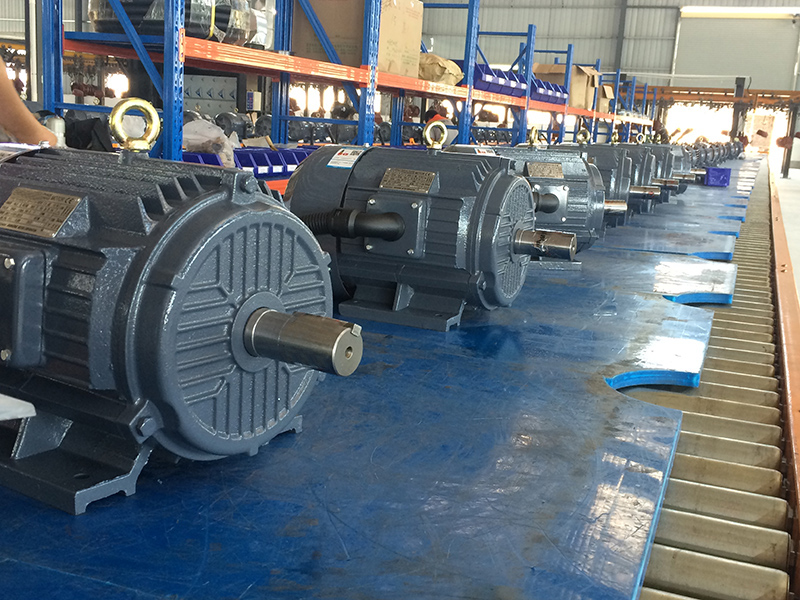

High Efficiency 80~355mm 0.75~375kW Three phase IE4 AC Asynchronous Motor IP55,IP56,IP65
The YE4 series motor have large starting torque, low noise , small vibration, high degree of protection, large margin of
temperature rise, safe and reliable operation, ect.
It can drive machine tools , fans, pumps , compressors, mixers, packaging machinery, construction machinery and other mechanical
transmission equipment , widely used in industries such as agriculture, national defense, chemical industry, petroleum ,
transportation, food and beverages, medicine and other fields.
Rated Voltage: 380V,415V,or customerized.
Rated Frequency: 50Hz or 60Hz
Protection Level: IP55
Cooling Method: IC411
Insulation Class: F
Operation Mode: S1
Altitude: ≤ 1000M
Ambient Temperature: -15℃~+40℃
| Output power range | 0.75kw-315kw | Speed | 1000rpm/1500rpm/3000rpm |
| rated voltage | 220/380V,230/400V,380V/660V,400/690V | Rated frequency | 50hz,60hz |
| Insulation class | class F or H | Protection class | IP54/IP55 |
| Housing Material | Aluminum/cast iron | Frame size | 80mm-355mm |
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
