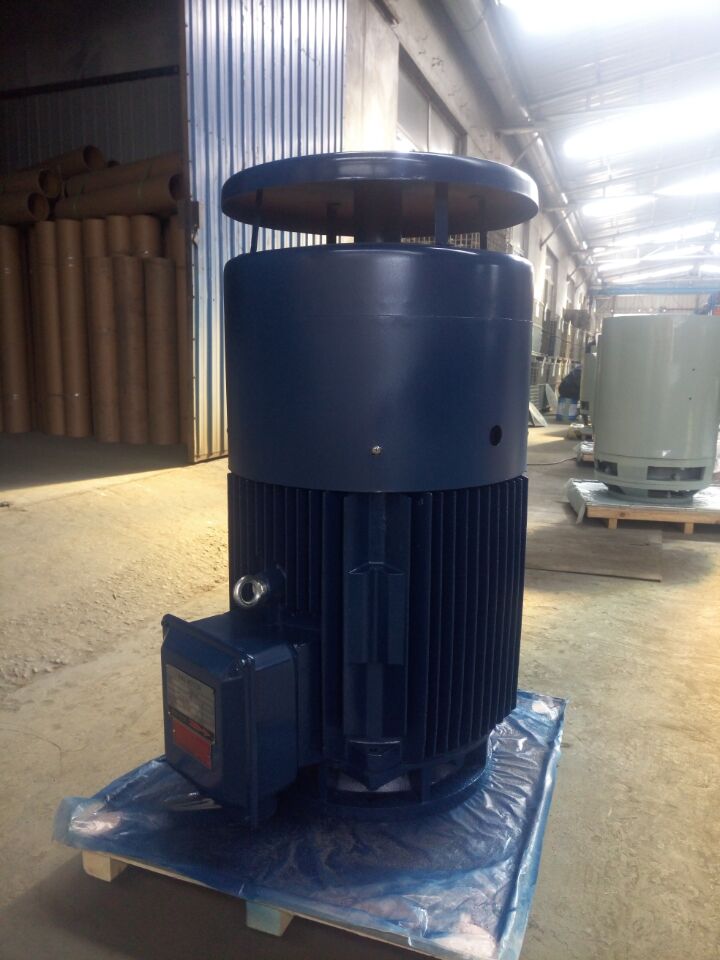

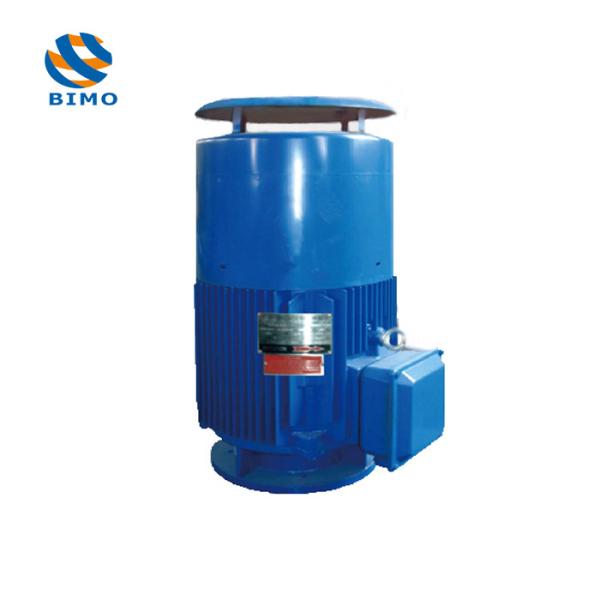

NEMA Vertical Hollow Shaft Motor IP 54 380/660 V 3 Phase 50HZ1450rpm VHS Motor
1, Series VHS vertical hollow-shaft motors, the latest product of our factory, are three phase squirrel cage induction motors specially for driving vertical deep-vell turbine pumps.
2, The motors are of high efficiency, high starting torque, quiet-running, low vibration, low temperature rise, can sustain heavy axial thrust load, have compact and reliable structure with easy maintenance etc. The rated output grades conform to the IEC standard.
3, After being fitted with vertical pumps, the motors are widely in pumping underground water in mines, city, farm and factories etc.The degree of protection is weather-protected type1(drip-proof).
| Model | Rated
Output
(hp/kW) | Rated
Current
(A) | Rated
Voltage
(V) | Rated
Frequency
(Hz) | Synchronous
Speed
(r/min) | Down Thrust
(Standard) | Insulation
Class | Degree of
Protection |
| (N) | (Ib) |
| VHS160-1-2 | 15/11 | 22.5/22 | 380 | 50 | 3000 | 9800 | 2200 | B,F | IP23 |
| VHS160-2-2 | 20/15 | 30 |
| VHS160-1-4 | 15/11 | 23/22.5 | 1500 | 12740 | 2860 |
| VHS160-2-4 | 20/15 | 30 |
| VHS180-1-2 | 25/18.5 | 36 | 380 | 50 | 3000 | 12740 | 2860 | B,F | IP23 |
| VHS180-2-2 | 30/22 | 43/42.5 |
| VHS180-1-4 | 25/18.5 | 37 | 1500 | 15680 | 3520 |
| VHS180-2-4 | 30/22 | 43.5/43 |
| VHS200-1-2 | 40/30 | 58 | 380 | 50 | 3000 | 16660 | 3740 | B,F | IP23 |
| VHS200-2-2 | 50/37 | 70.5/70 |
| VHS200-1-4 | 40/30 | 58.5 | 1500 | 21560 | 4850 |
| VHS200-2-4 | 50/37 | 72/71 |
| VHS200-3-4 | 60/45 | 85/85.5 |
| VHS250-1-4 | 75/55 | 105.5/103.5 | 380 | 50 | 1500 | 28420 | 6390 | B,F | IP23 |
| VHS250-2-4 | 100/75 | 139.5/140 |
| VHS250-3-4 | 125/90 | 173/167.5 |
| VHS280-1-4 | 150/110 | 205.5/202 | 380 | 50 | 1500 | 39200 | 8810 | B,F | IP23 |
| VHS280-2-4 | 175/132 | 238/241 |
| VHS280-3-4 | 200/150 | 275/276 |
| VHS280-4-4 | 250/185 | 348/345 |
| VHS280-5-4 | 270/200 | 374/371 |
| VHS280-6-4 | 300/220 | 415/408 |
| VHS355-1-4 | 380/280 | 500 | 380 | 50 | 1500 | 63560 | 14000 | F | IP23 |
| VHS355-2-4 | 400/300 | 526/536 |
| VHS355-3-4 | 430/315 | 565/563 | 108960 | 24000 |
| VHS355-4-4 | 450/335 | 591/598 |
| VHS355-5-4 | 480/355 | 630/634 |
| VHS355-6-4 | 500/370 | 657/661 |
| VHS132-1-2 | 7.5/5.5 | 11/0.8 | 380 | 50 | 3000 | 7840 | 1760 | F | IP54 |
| VHS132-2-2 | 10/7.5 | 14.4/14.5 |
| VHS180-1-2 | 15/11 | 22.5./22 | 380 | 50 | 3000 | 9800 | 2200 | F | IP54 |
| VHS180-2-2 | 20/15 | 30 |
| VHS180-1-4 | 15/11 | 23/22.5 | 1500 | 12740 | 2860 |
| VHS180-2-4 | 20/15 | 30 |
| VHS200-1-2 | 25/18.5 | 36 | 380 | 50 | 3000 | 12740 | 2860 | F | IP54 |
| VHS200-2-2 | 30/22 | 43/42.5 |
| VHS200-1-4 | 25/18.5 | 37 | 1500 | 15680 | 3520 |
| VHS200-2-4 | 30/22 | 43.5/43 |
| VHS225-1-2 | 40/30 | 56.8/58 | 380 | 50 | 3000 | 16660 | 3740 | F | IP54 |
| VHS225-2-2 | 50/37 | 70.5/70 |
| VHS225-3-2 | 60/45 | 83/85 |
| VHS225-1-4 | 40/30 | 58/58.5 | 1500 | 21560 | 4850 |
| VHS225-2-4 | 50/37 | 72/71 |
| VHS225-3-4 | 60/45 | 85/85.5 |
| VHS280-1-4 | 75/55 | 105.5/103.5 | 380 | 50 | 1500 | 28420 | 6390 | F | IP54 |
| VHS280-2-4 | 100/75 | 139.5/140 |
| VHS280-3-4 | 125/90 | 173/167.5 |
| VHS315-1-4 | 150/110 | 205.5/202 | 380 | 50 | 1500 | 39200 | 8810 | F | IP54 |
| VHS315-2-4 | 175/132 | 238/241 |
| VHS315-3-4 | 200/150 | 275/276 |
| VHS315-4-4 | 250/185 | 348/345 | 62720 | 14094 |
| VHS315-5-4 | 270/200 | 374/371 |
| VHS355-1-4 | 300/220 | 405.9/405 | 380 | 50 | 1500 | 74620 | 16770 | F | IP54 |
| VHS355-2-4 | 350/260 | 480/475 |
| VHS355-3-4 | 380/280 | 513.6/515 |
| VHS355-4-4 | 400/300 | 539.2/550 |
| VHS355-5-4 | 430/315 | 576.9/575 |
| VHS355-6-4 | 450/335 | 614/615 |
| VHS355-7-4 | 480/355 | 645.9/650 |
| VHS355-8-4 | 500/375 | 671.3/685
|
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
