ODP NEMA AC Motor IP23 1/3HP-3 Hp 56 Frame Motor Single Phase

  • 1
  • 2
  • 3

Brand Name : BM

Model Number : NEMA 56

Certification : CE UL

Place of Origin : China

MOQ : 10PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 10-25days

Packaging Details : Carton/Pallet

Name : Nema odp MOTOR

Frame Size : Frame 56

Frequency : 60 Hz

Horsepower : 3hp

Speed : 1500rpm

Voltage : 230V

Contact Now

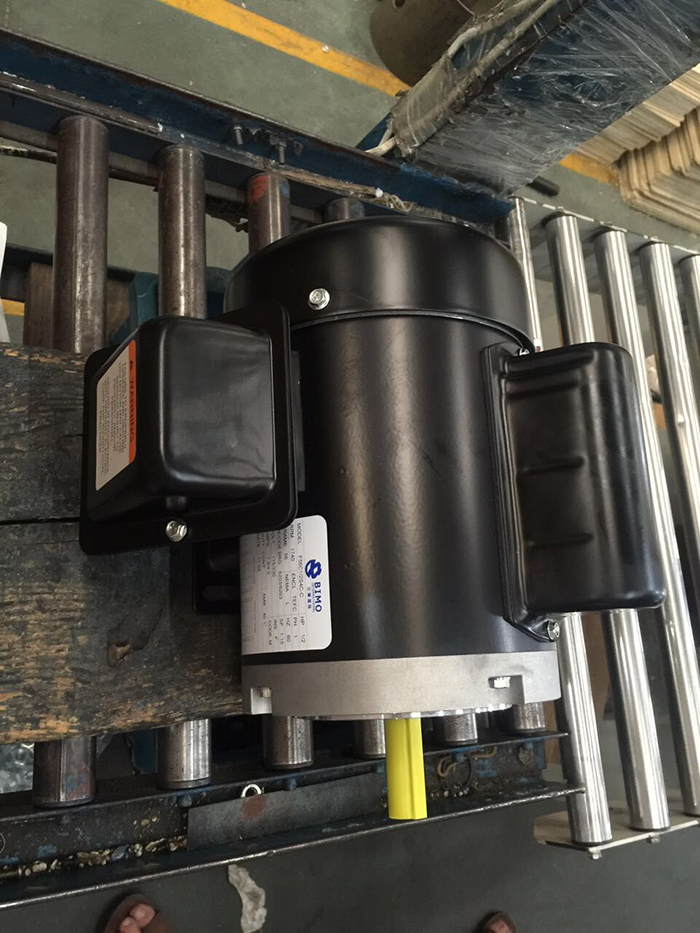

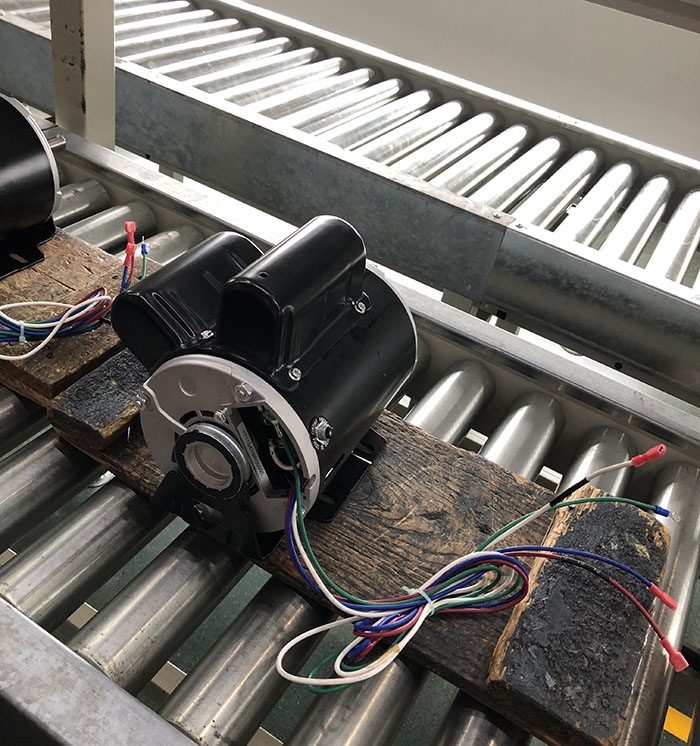

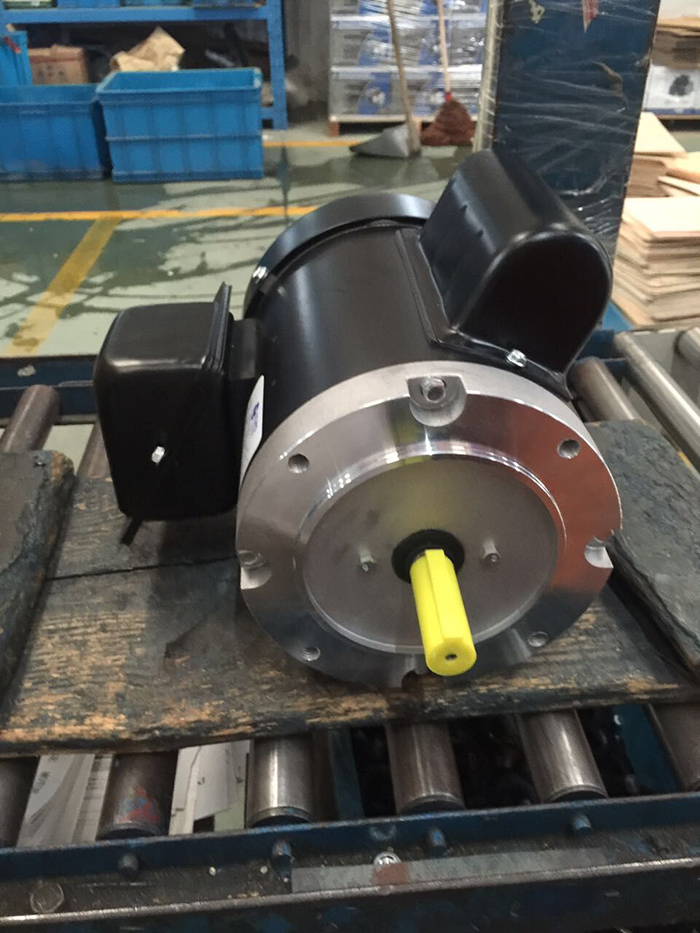

AC ODP 56 Frame IP 23 1/3HP-3HP Single Phase Motor with UL and CSA

1, Single Phase Air Compressor OEM Special Replacement Motors

2, Designed for air compressor loads.May be suitable for other applications having similar loads
3,Shaft End, 1.0SF, CL B Insulation.40ºC Ambient temperature, Rigid Base. Rolled steel.
HP RPM AMPS VOLTS Protector frame Shaft diameter Shaft length ENC HZ IP INS ROT Packing size(CM) weight(kg)
1 3600 13.2/6.6 115/230 yes 56 5/8" 1.88" ODP 60 23 F CCW
1 3600 11.2/5.6 115/230 yes 34*28*28 16
1.5 3600 17.4/8.7 115/230 yes
2SPL 3600 15/7.5 115/230 yes 34*27*26 14.5
3SPL 3600 18/9 115/230 yes 38*27*27 18.7
3.7SPL 3600 16-15 208-230 yes 38*27*27 18.6
5SPL 3600 16-15 208-230 yes 38*27*27 20.5
3 3600 16-15 208-230 yes 143/5T 7/8" 2.25"
5 3600 22-21 208-230 yes 143/5T 7/8" 2.25" 40*27*27 23.6

ODP NEMA AC Motor IP23 1/3HP-3 Hp 56 Frame Motor Single PhaseODP NEMA AC Motor IP23 1/3HP-3 Hp 56 Frame Motor Single PhaseODP NEMA AC Motor IP23 1/3HP-3 Hp 56 Frame Motor Single PhaseODP NEMA AC Motor IP23 1/3HP-3 Hp 56 Frame Motor Single PhaseODP NEMA AC Motor IP23 1/3HP-3 Hp 56 Frame Motor Single PhaseODP NEMA AC Motor IP23 1/3HP-3 Hp 56 Frame Motor Single PhaseODP NEMA AC Motor IP23 1/3HP-3 Hp 56 Frame Motor Single Phase

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
