Premium Efficiency 3 Phase Induction Motor 30kw 380V 660V VHS Motor

Brand Name : BM

Model Number : VHS200-1-4

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000PC per month

Delivery Time : 25days

Packaging Details : wooden case

Name : Premium Efficiency 3 Phase Induction Motor

Insulation Class : F

Power : 30kw

Standard : IEC/NEMA standard

Protection : IP23

Voltage : 380/660V

Contact Now

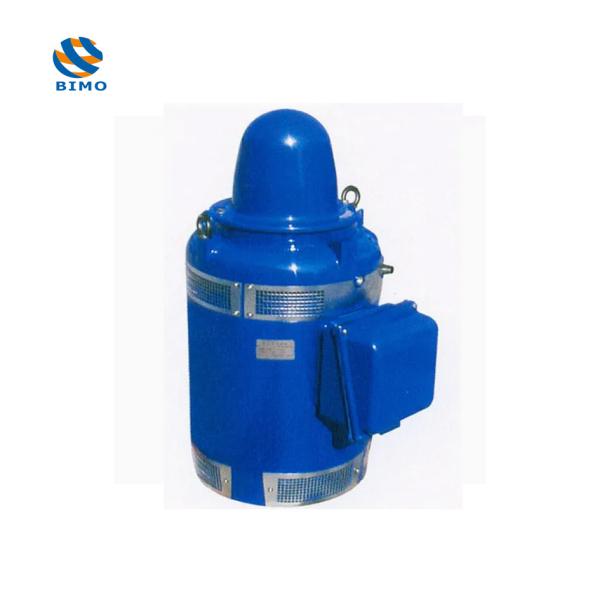

Premium Efficiency IP23 30KW Vertical Hollow Shaft Motor Three Phase Induction VHS Motor 380/660V

1, Series VHS vertical hollow-shaft motors, the latest product of our factory, are three phase squirrel cage induction motors specially for driving vertical deep-vell turbine pumps.

2, The motors are of high efficiency, high starting torque, quiet-running, low vibration, low temperature rise, can sustain heavy axial thrust load, have compact and reliable structure with easy maintenance etc. The rated output grades conform to the IEC standard.

3, After being fitted with vertical pumps, the motors are widely in pumping underground water in mines, city, farm and factories etc.The degree of protection is weather-protected type1(drip-proof).

Model	Rated Output (hp/kW)	Rated Current (A)	Rated Voltage (V)	Rated Frequency (Hz)	Synchronous Speed (r/min)	Down Thrust (Standard)		Insulation Class	Degree of Protection
						(N)	(Ib)
VHS160-1-2	15/11	22.5/22	380	50	3000	9800	2200	B,F	IP23
VHS160-2-2	20/15	30
VHS160-1-4	15/11	23/22.5			1500	12740	2860
VHS160-2-4	20/15	30
VHS180-1-2	25/18.5	36	380	50	3000	12740	2860	B,F	IP23
VHS180-2-2	30/22	43/42.5
VHS180-1-4	25/18.5	37			1500	15680	3520
VHS180-2-4	30/22	43.5/43
VHS200-1-2	40/30	58	380	50	3000	16660	3740	B,F	IP23
VHS200-2-2	50/37	70.5/70
VHS200-1-4	40/30	58.5			1500	21560	4850
VHS200-2-4	50/37	72/71
VHS200-3-4	60/45	85/85.5
VHS250-1-4	75/55	105.5/103.5	380	50	1500	28420	6390	B,F	IP23
VHS250-2-4	100/75	139.5/140
VHS250-3-4	125/90	173/167.5
VHS280-1-4	150/110	205.5/202	380	50	1500	39200	8810	B,F	IP23
VHS280-2-4	175/132	238/241
VHS280-3-4	200/150	275/276
VHS280-4-4	250/185	348/345
VHS280-5-4	270/200	374/371
VHS280-6-4	300/220	415/408
VHS355-1-4	380/280	500	380	50	1500	63560	14000	F	IP23
VHS355-2-4	400/300	526/536
VHS355-3-4	430/315	565/563				108960	24000
VHS355-4-4	450/335	591/598
VHS355-5-4	480/355	630/634
VHS355-6-4	500/370	657/661
VHS132-1-2	7.5/5.5	11/0.8	380	50	3000	7840	1760	F	IP54
VHS132-2-2	10/7.5	14.4/14.5
VHS180-1-2	15/11	22.5./22	380	50	3000	9800	2200	F	IP54
VHS180-2-2	20/15	30
VHS180-1-4	15/11	23/22.5			1500	12740	2860
VHS180-2-4	20/15	30
VHS200-1-2	25/18.5	36	380	50	3000	12740	2860	F	IP54
VHS200-2-2	30/22	43/42.5
VHS200-1-4	25/18.5	37			1500	15680	3520
VHS200-2-4	30/22	43.5/43
VHS225-1-2	40/30	56.8/58	380	50	3000	16660	3740	F	IP54
VHS225-2-2	50/37	70.5/70
VHS225-3-2	60/45	83/85
VHS225-1-4	40/30	58/58.5			1500	21560	4850
VHS225-2-4	50/37	72/71
VHS225-3-4	60/45	85/85.5
VHS280-1-4	75/55	105.5/103.5	380	50	1500	28420	6390	F	IP54
VHS280-2-4	100/75	139.5/140
VHS280-3-4	125/90	173/167.5
VHS315-1-4	150/110	205.5/202	380	50	1500	39200	8810	F	IP54
VHS315-2-4	175/132	238/241
VHS315-3-4	200/150	275/276
VHS315-4-4	250/185	348/345				62720	14094
VHS315-5-4	270/200	374/371
VHS355-1-4	300/220	405.9/405	380	50	1500	74620	16770	F	IP54
VHS355-2-4	350/260	480/475
VHS355-3-4	380/280	513.6/515
VHS355-4-4	400/300	539.2/550
VHS355-5-4	430/315	576.9/575
VHS355-6-4	450/335	614/615
VHS355-7-4	480/355	645.9/650
VHS355-8-4	500/375	671.3/685

Premium Efficiency 3 Phase Induction Motor 30kw 380V 660V VHS Motor

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
