NEMA Design D EPACT Oil Well Pump Motor 2HP Three Phase Induction Electric AC Motor 230V 460V

Product Categories
Bimo Machinery Co.,Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

NEMA Design D EPACT Oil Well Pump Motor 2HP Three Phase Induction Electric AC Motor 230V 460V

Brand Name : BM

Model Number : EPACT

Certification : CE UL

Place of Origin : China

MOQ : 10PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 10-25days

Packaging Details : Carton/Pallet

Name : EPACT motor

Frame Size : Frame 56

Frequency : 60 Hz

Horsepower : 2hp

Speed : 3600rpm

Voltage : 230/460v

Contact Now

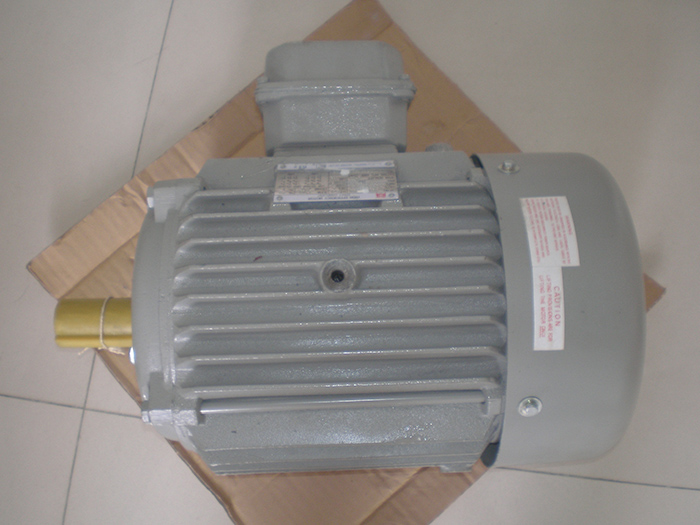

NEMA Design DStandard EPACT Oil Well Pump Motor 2HP Three Phase Induction Electric AC Motor 230/460V Cast Iron Motor

HP:2-125HP
RPM:1200, 900 RPM
Frame:184T-449T
Protection:IP55
Class B Temp Rise
40ºC Ambient Temperature Rating
Class F Insulation For VFD Application
Sator Winding Tropicalization

Voltage HZ HP P0LES RPM Frame Insulation Class Enclosure Type Service Factor
230/460/796 60 2 6 1200 184T F TEFC 1.15
230/460/796 60 3 6 1200 213T F TEFC 1.15
230/460/796 60 5 6 1200 215T F TEFC 1.15
230/460/796 60 7.5 6 1200 254T F TEFC 1.15
230/460/796 60 10 6 1200 256T F TEFC 1.15
230/460/796 60 15 6 1200 284T F TEFC 1.15
230/460/796 60 20 6 1200 286T F TEFC 1.15
230/460/796 60 25 6 1200 324T F TEFC 1.15
230/460/796 60 30 6 1200 326T F TEFC 1.15
230/460/796 60 40 6 1200 364T F TEFC 1.15
230/460/796 60 50 6 1200 365T F TEFC 1.15
230/460/796 60 50 6 1200 404T F TEFC 1.15
230/460/796 60 60 6 1200 404T F TEFC 1.15
230/460/796 60 75 6 1200 405T F TEFC 1.15
230/460/796 60 75 6 1200 444T F TEFC 1.15
230/460/796 60 100 6 1200 444T F TEFC 1.15
230/460/796 60 125 6 1200 445T F TEFC 1.15
230/460/796 60 150 6 1200 449T F TEFC 1.15
230/460/796 60 200 6 1200 449T F TEFC 1.15
230/460/796 60 2 8 900 213T F TEFC 1.15
230/460/796 60 3 8 900 215T F TEFC 1.15
230/460/796 60 5 8 900 254T F TEFC 1.15
230/460/796 60 7.5 8 900 256T F TEFC 1.15
230/460/796 60 10 8 900 284T F TEFC 1.15
230/460/796 60 15 8 900 286T F TEFC 1.15
230/460/796 60 20 8 900 324T F TEFC 1.15
230/460/796 60 25 8 900 326T F TEFC 1.15
230/460/796 60 30 8 900 364T F TEFC 1.15
230/460/796 60 40 8 900 365T F TEFC 1.15
230/460/796 60 50 8 900 404T F TEFC 1.15
230/460/796 60 60 8 900 405T F TEFC 1.15
230/460/796 60 75 8 900 444T F TEFC 1.15
230/460/796 60 100 8 900 445T F TEFC 1.15
230/460/796 60 125 8 900 447T F TEFC 1.15
230/460/796 60 150 8 900 449T F TEFC 1.15

NEMA Design D EPACT Oil Well Pump Motor 2HP Three Phase Induction Electric AC Motor 230V 460VNEMA Design D EPACT Oil Well Pump Motor 2HP Three Phase Induction Electric AC Motor 230V 460V
NEMA Design D EPACT Oil Well Pump Motor 2HP Three Phase Induction Electric AC Motor 230V 460VNEMA Design D EPACT Oil Well Pump Motor 2HP Three Phase Induction Electric AC Motor 230V 460V

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
